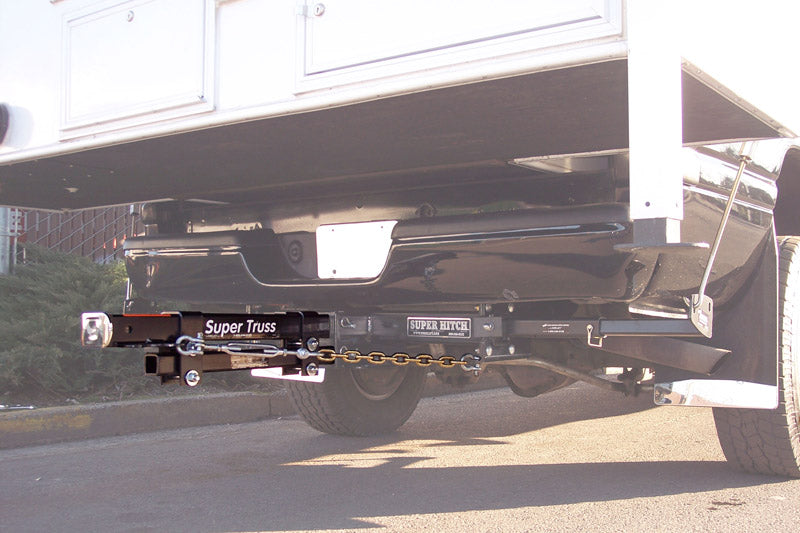

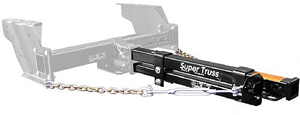

Torklift E1521 SuperTruss Extends hitch 21" from standard position.
To determine the length of extension needed:
Measure from the rear end of truck receiver hitch, usually even with the face of the rear bumper, to the rear-most part of the camper (bumper, rear of body etc. Do not include jacks in measurement).
If the camper is not mounted on the pickup, follow these three steps:
1. Measure inside the truck bed, from the front inside of the bed to the outside face of the rear bumper.
2. Measure the camper's overall floor length, including the rubber bumpers on the front, to the outside edge of the bumper on the rear.
3. Subtract the two figures: the difference between them is the length of the extension you need. *
Without Weight Distribution Hitch (Dead Weight):
750 lb. Tongue weight
7,500 lb. Trailer weight
With Weight Distributing Hitch:
1,400 lb. Tongue Weight
14,000 lb Trailer Weight
DO NOT EXCEED VEHICLE TOW RATING
USING THIS PRODUCT WITHOUT A LOAD EQUALIZING SYSTEM LIMITS YOUR CAPACITY TO DEAD WEIGHT RATING
FAILURE TO STAY WITHIN LIMITATIONS MAY RESULT IN VEHICLE DAMAGE AND VOID YOUR WARRANTY!!!
THE SUPERTRUSS EXTENSION IS NOT INTENDED FOR USE IN ANY TRAILER HITCH, OTHER THAN THE TORKLIFT SUPERHITCH

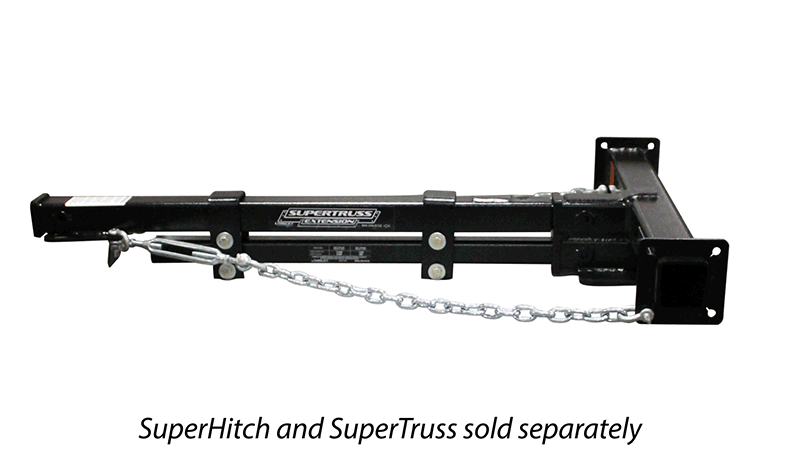

SuperHitch receivers and SuperTruss extensions are sold separately.
Please be certain the extension you order is correct for your combination. Customer will be responsible for all shipping* plus a 15% restocking fee on all returned SuperTruss extensions. No exceptions.
