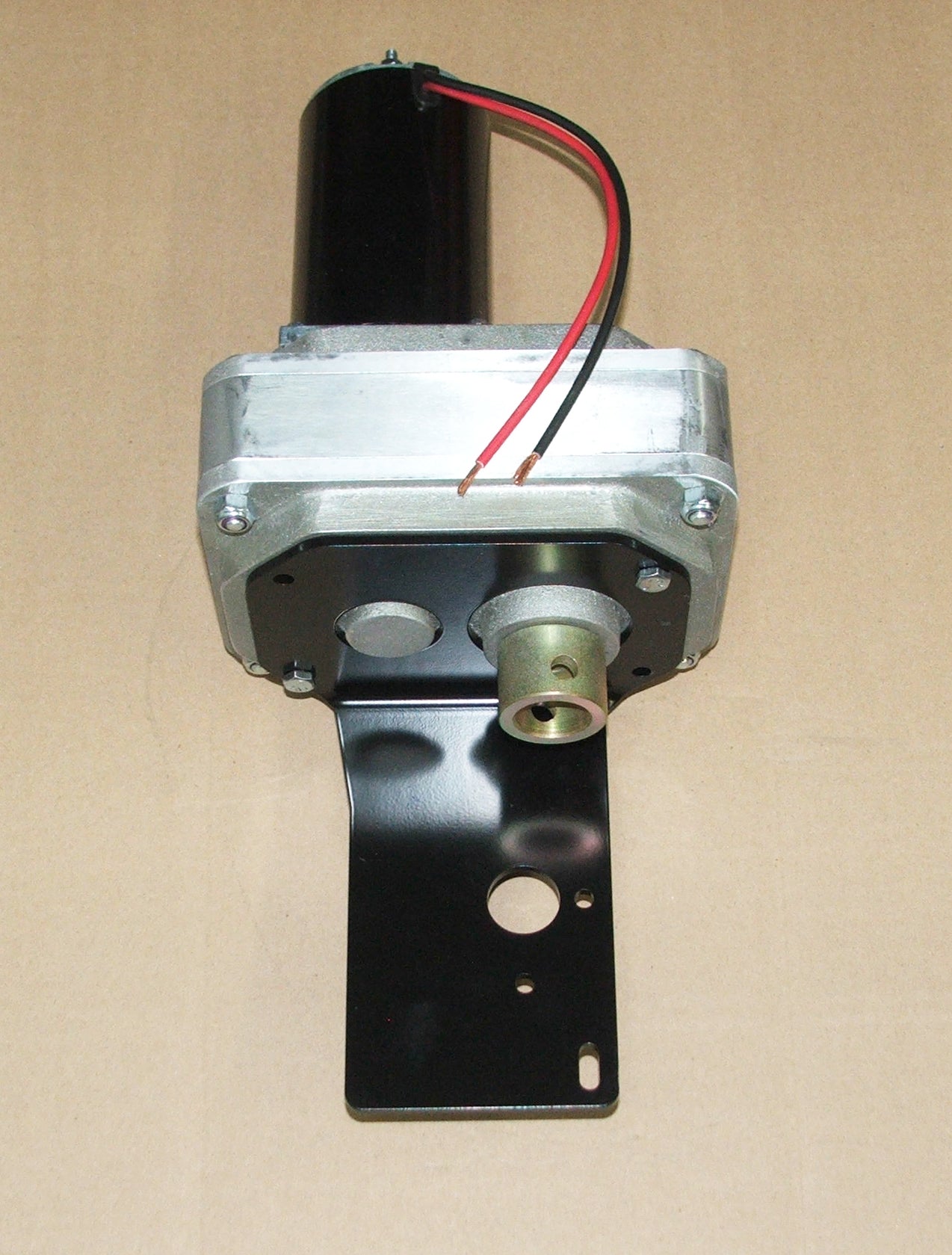

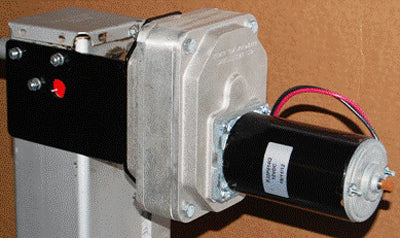

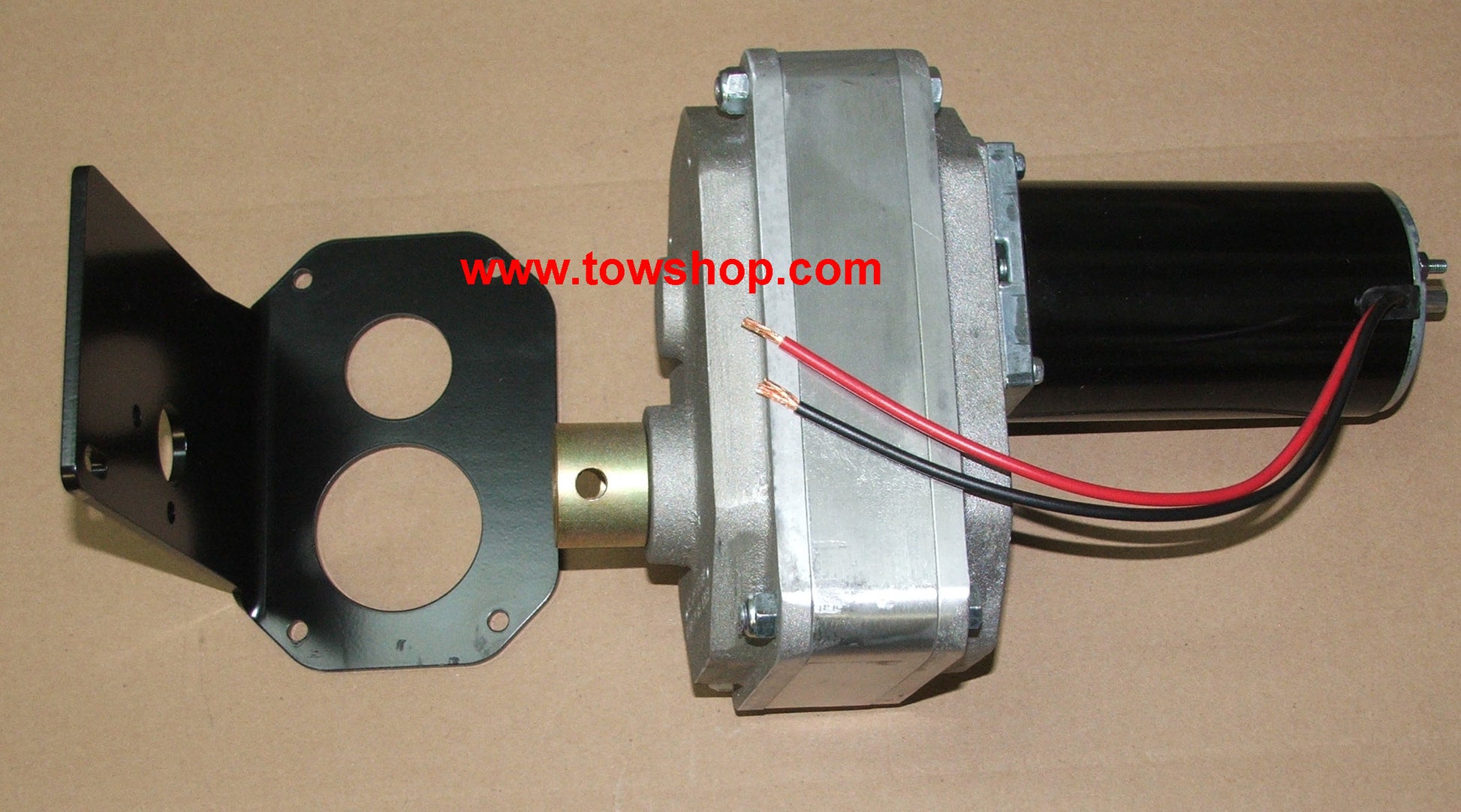

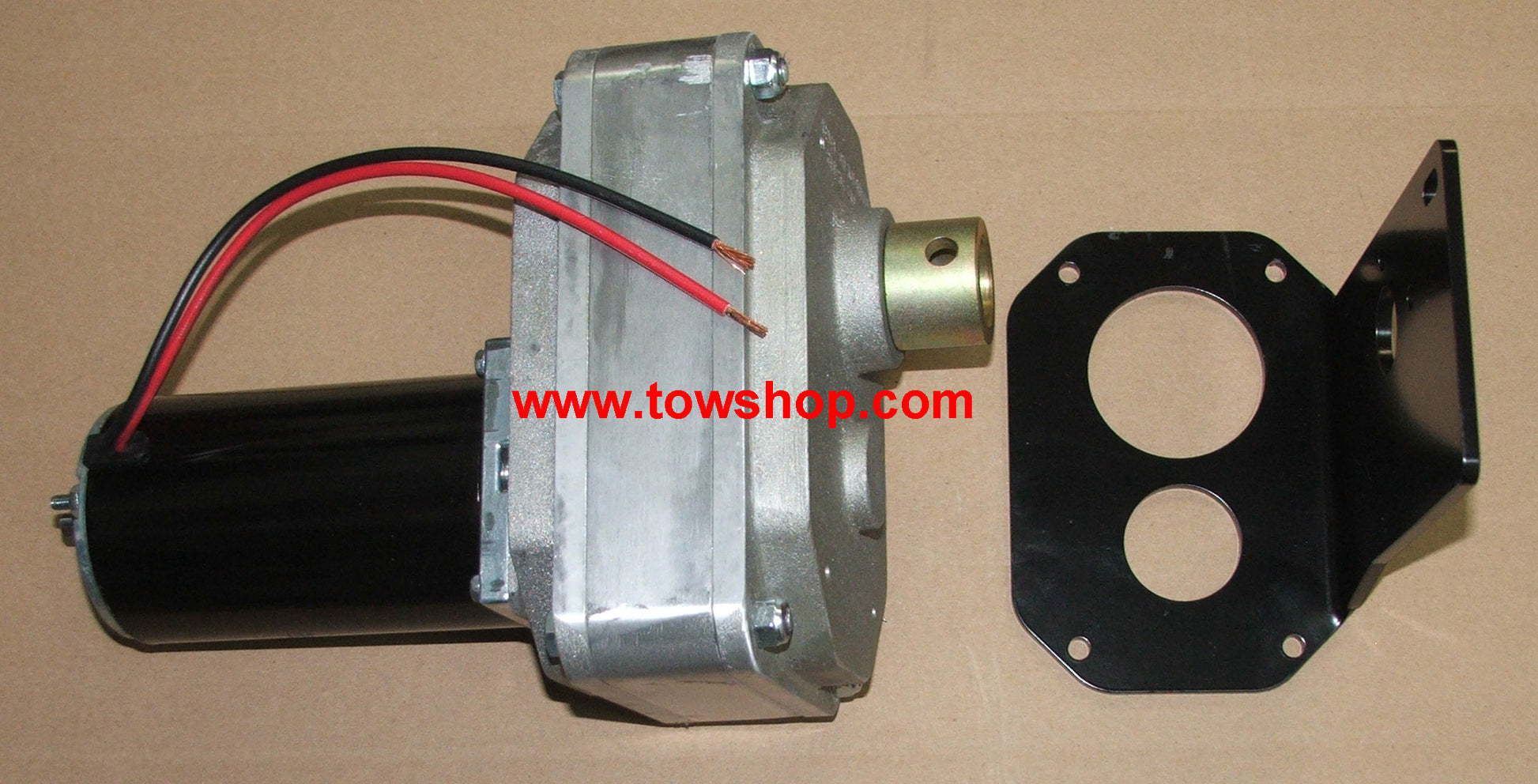

MAGNUM LIFT allows you to easily convert your heavy duty single speed Bulldog, Ram, Binkley / Holland or other similar gooseneck trailer jack to electric power operation.
Fits jacks with a 1" diameter crank shaft.
Bolts to body of trailer jack with supplied bracket and mounting bolts.
Runs from trailer's existing 12 Volt DC power source.

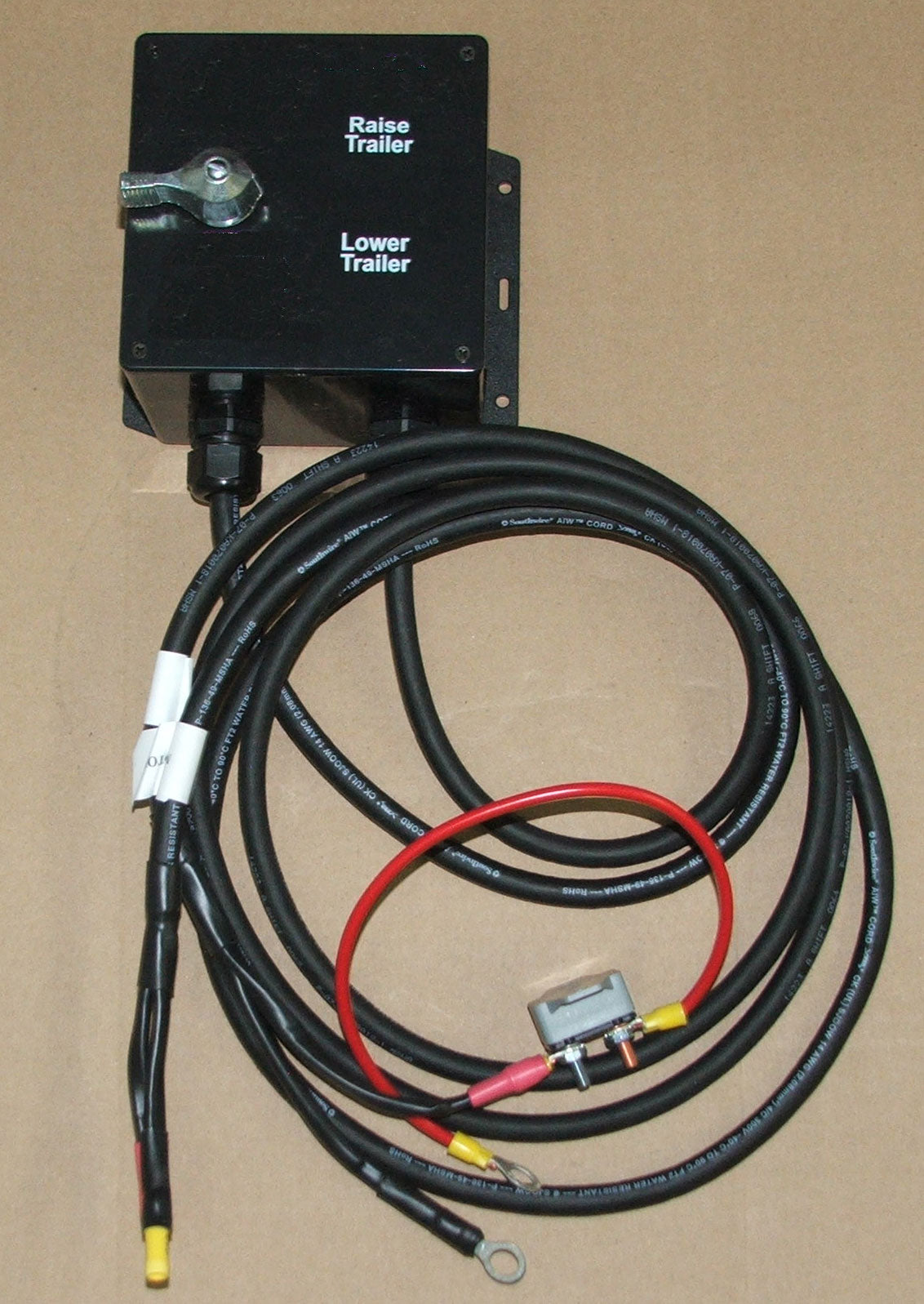

Comes as a complete kit with switch box, wiring harness, electrical connectors, manual override and mounting bracket.
Output shaft cranking speed is appx. 66 RPM.

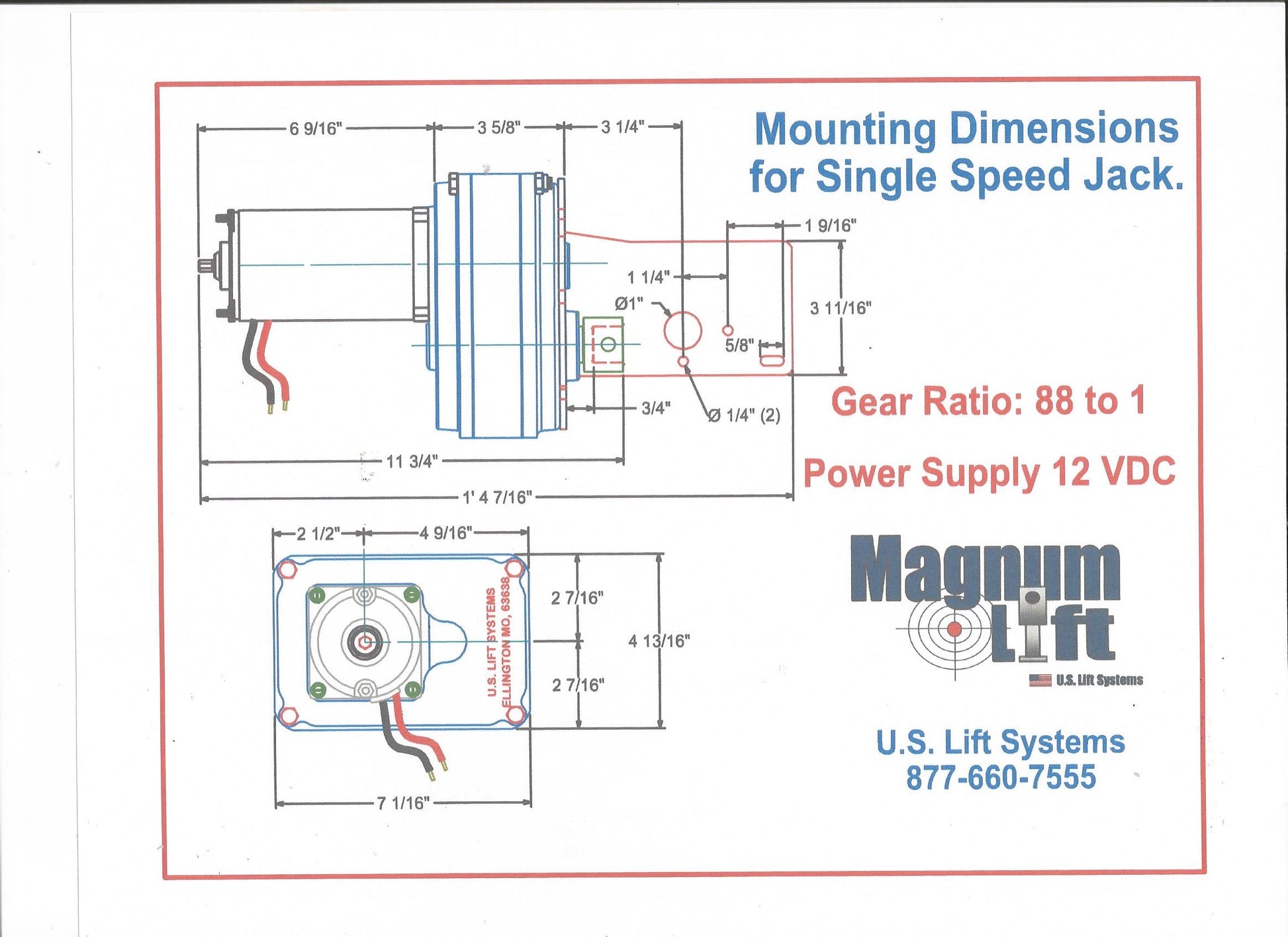

The Magnum Electric is 11-1/2" long overall, measured from end of motor to end of crankshaft coupler.
Gear box is 7-1/4" high x 5" wide. (If your jack is mounted solid to the face of the trailer interference with the trailer body may occur)
Installs with electric drill and basic hand tools.
Please note, this kit is not intended for use on semi type trailers.
2-Year factory warranty.
Jack shown for illustration purpose ONLY. Sold separately.
